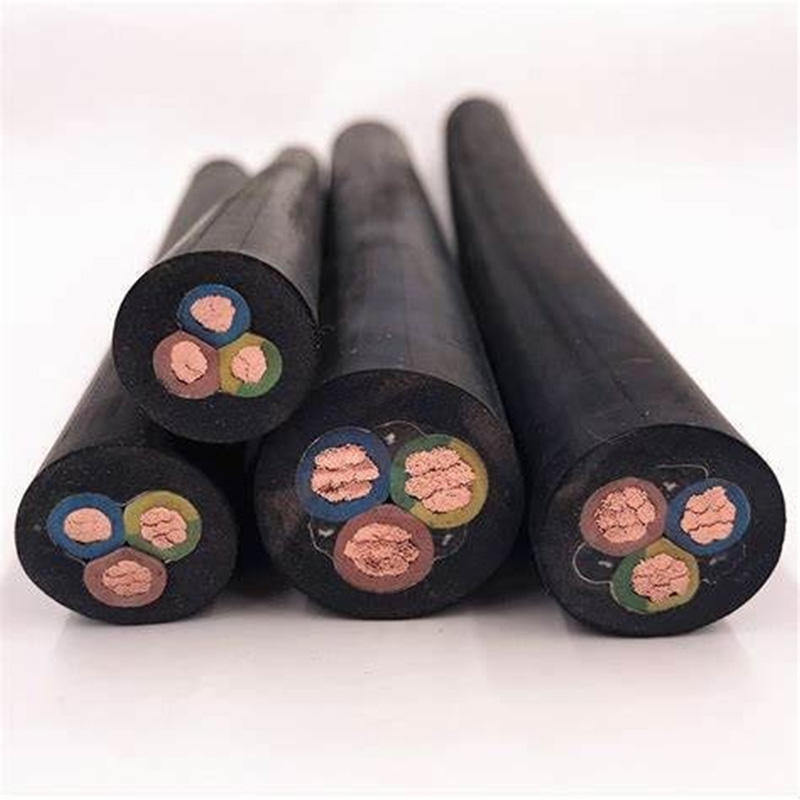

Highlight: YCW 750 volts rubber power cable, YCW lszh fire resistant rubber power cable, 450V Flexible Rubber Cable
Product Description
Industrial Rubber Sheathed Flexible Cable Reliable 450/750V Rated Voltage
H07RN-F Cable Ratings & Approvals:
· Temperature Range: -25°C to +60°C
· VDE
· HAR
· CE

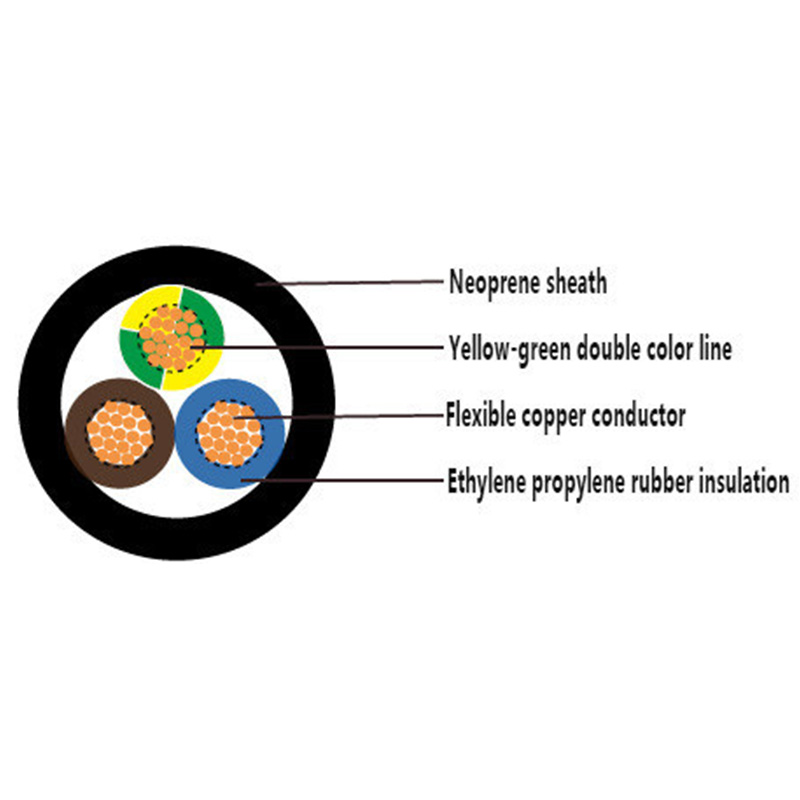

H07RN-F Cable Construction:
· Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
· Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
· Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
· Conductor Stranding: from 2 conductors stranded in layers
· Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
· Jacket Color: Black
H07RN-F Cable Technical Data:
· Nominal Voltage: Uo/U 450/750 volts
· Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
· Min. Bending Radius: 15 x O.D.
Working temperature: H07RN-F model rated voltage U0/U IS 450/750V H05RN-F model rated voltage U0/U IS 300/500V H05RR-F model rated voltage U0/U IS 300/500V Long time allow working temperature of wire core cant be higher than 60C
HAR Code
IEC
Description
Voltage Design
Cores
H05RR-F
60245IEC 53(YZ)/YZ
Ordinary rubber sheathed cord
300/500V
2~6
H05RN-F
60245 IEC 57(YZW)/YZW
Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord
300/500V
2~6
H07RN-F
60245 IEC 66(YCW)/YC
Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable
450/750V
1~5, 3+1/3+2/4+1
H01N2-D
60245 IEC 81(YH)
Rubber sheathed arc-welding electrode cable
100/100V
10-120
60245 IEC 82(YHF)
polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable
Our electrical cable export packing is specially made to ensure that the quality of the products will be not affected during the transportation. Our electrical cable is using electrical cable wheel for the packing, the wheel can be all steel, steel frame and fumigated wood, or fumigated wooden cases. We are using different packing for different length of the cable, to ensure there will be no problem during the delivery of the products.
1. If the diameter of the wheel is longer than 2 meters, we are using all steel wheel to pack the products
2. If the diameter of the wheel is between 1.4meters to 1.8meters, we are using steel frame and fumigated wood to pack the products.
3. If the diameter of the wheel is less than 1.4meters, we will use the fumigated wooden wheel to pack the products
4. For the packing of the electrical wires and small quantity of cables, we will use the fumigated wooden box to pack.
TAG:
Rubber Insulated Power Cables
Rubber Insulated Flexible Cable
Rubber Sheathed Flexible Cable

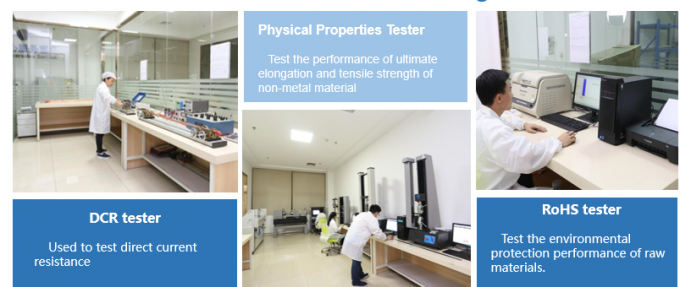

▼ CNAS Labortory
