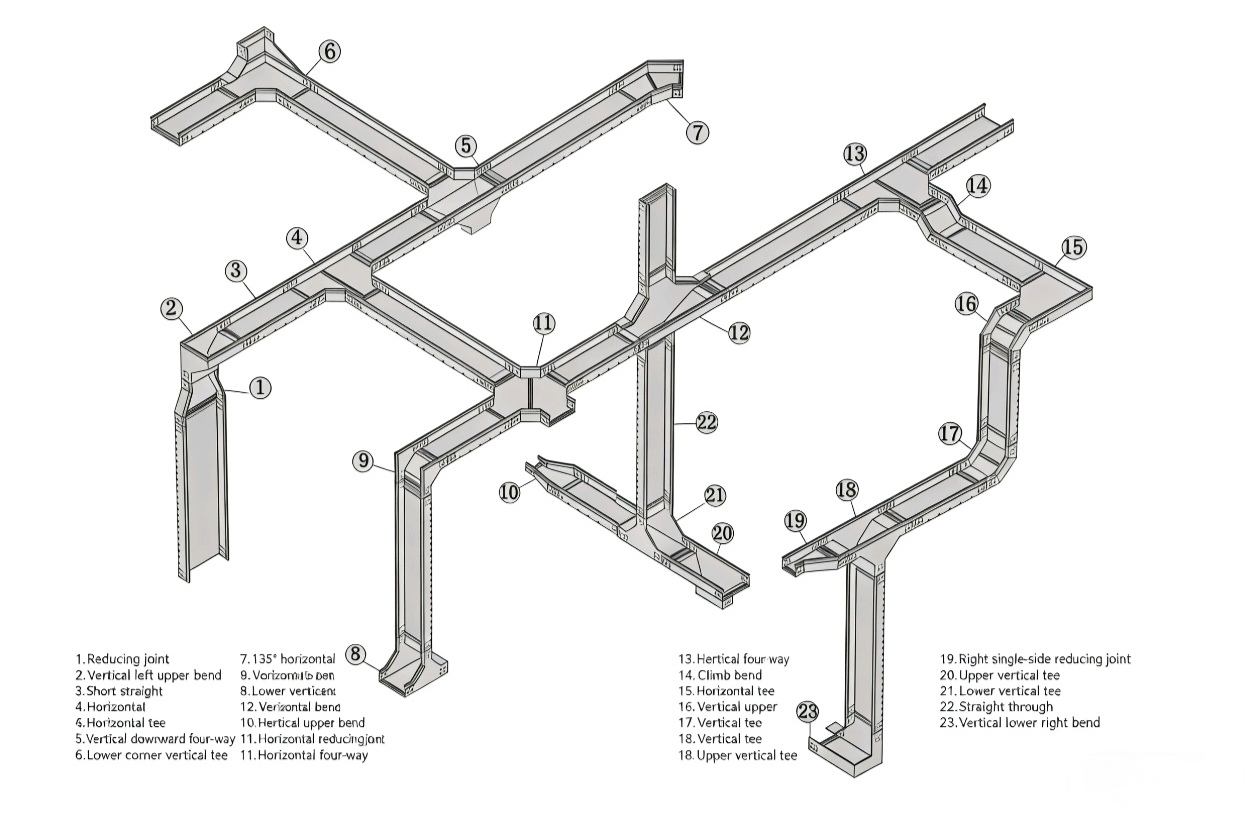

Cable Tray Fittings & Accessories Diagram: Complete Selection Guide

Cable tray elbow accessories, various sizes can be customized according to your requirements.

Product Advantage

Function Introduction of Cable Tray Elbow

Cable tray elbow is a key accessory for tray-type, trough-type and ladder-type cable trays. It is mainly used for connection and transition when the cable tray turns, changes direction, reduces or enlarges size, or slopes up and down, ensuring smooth, neat and safe cable routing.

Core Functions

Realize direction change

Meet the wiring needs of horizontal 90° left/right turn, 45° turn, vertical up/down slope and bending, adapting to building structure changes.

Protect cables from damage

The arc/smooth corner design prevents cables from being squeezed, bent or scratched at turns, extending the service life of cables.

Organize wiring and improve appearance

Seamlessly connect with straight trays, making the circuit layout neat and convenient for later inspection and maintenance.

Adapt to complex construction environments

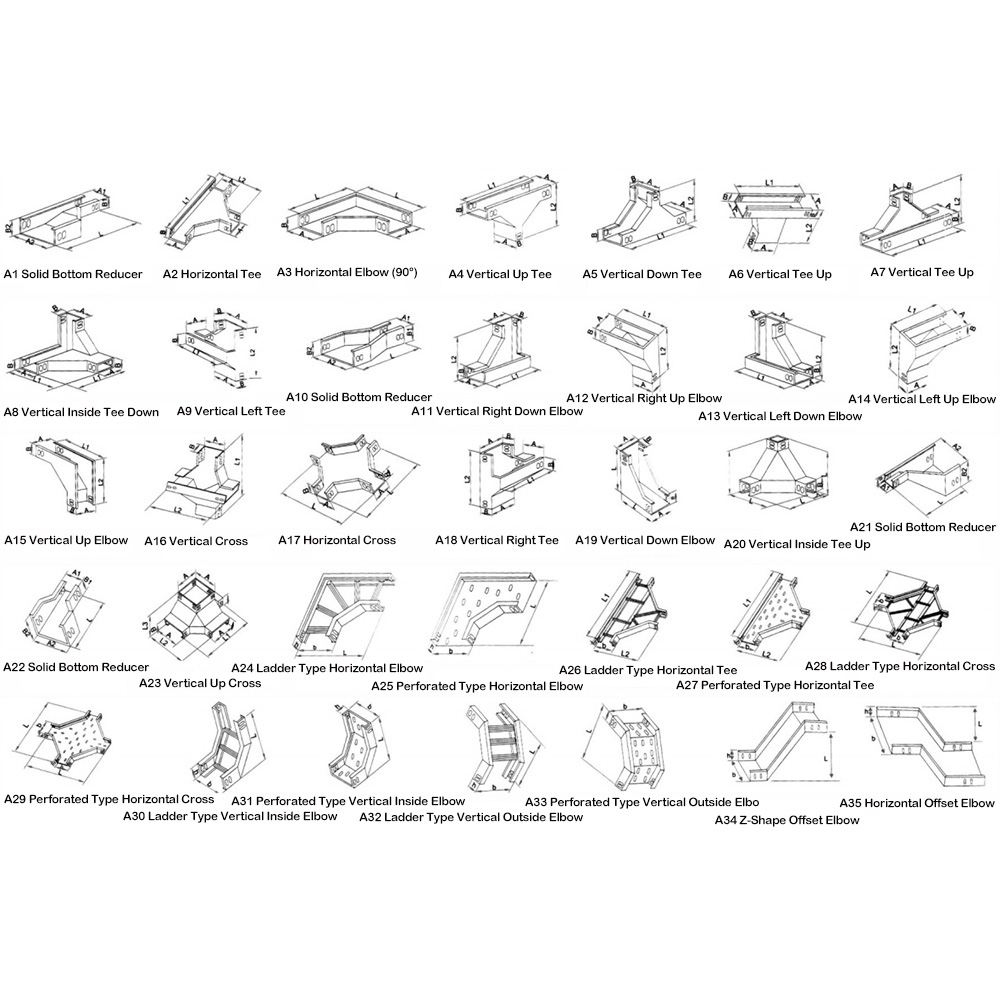

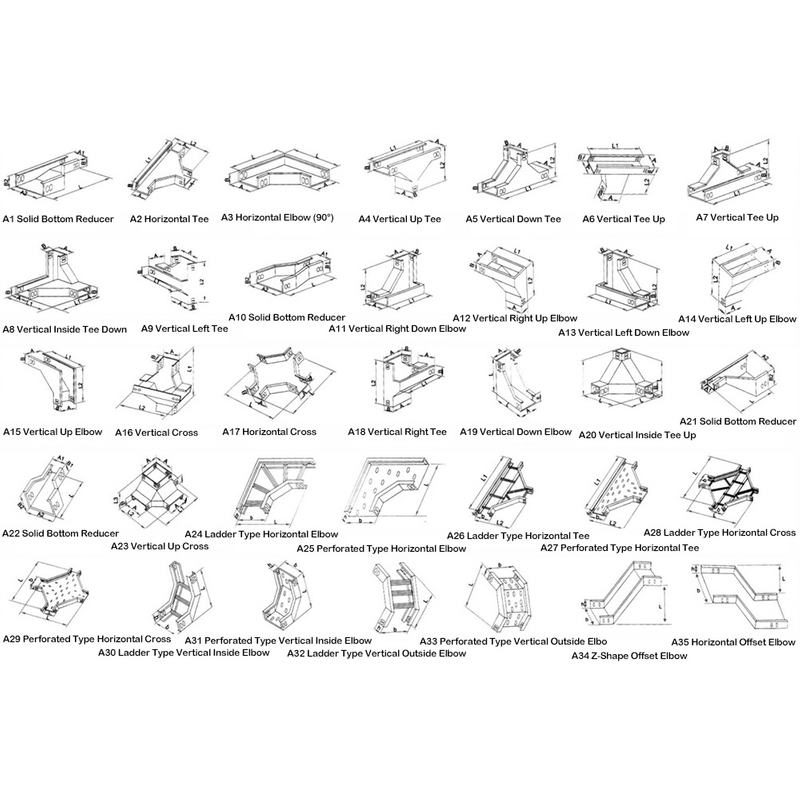

Cooperate with tees, crosses, reducers and other fittings to meet multi-directional branching and variable width/height wiring scenarios.

Technical Parameters

Product Uses

Application Scenarios of Cable Tray Elbow

1.For 90°/45° horizontal turns of cables in workshops, malls, office buildings.

2.For vertical transitions between floors, ceilings, or equipment with height differences.

3.To bypass obstacles like beams, columns, pipes, walls and equipment.

4.With tees and crosses, for multi-branch, convergence and cross wiring.

5.For irregular spaces: stairwells, elevator shafts, curved corridors, steel roofs.

6.For data centers, power distribution rooms, production lines with complex cabling.

7.For outdoor cable tray turns, slopes and corner transitions in factories and campuses.
