Brand Name:
DONGJIAXIN
Model Number:
VV,VV22
MOQ:
Negotiable
Price:
Negotiable
Payment Terms:
L/C, T/T
Supply Ability:
100KM/Week
Detail Information Place Of Origin:CHINA
Certification:IEC, ROSH
Model Name:VV,VV22
Core Conductor:Annealed Copper (Stranded Core)
Insulator:PVC
Sheath:PVC
Nos.Of Core:2~5 Core
Advantage:Compressed Conductor Easy For Installation, UV - Resistant
Color:Black
Application:Underground
Packaging Details:Steel Wooden Drum, Coil In Foil / Drum
Highlight:yjv22 high voltage power cable,dsta high voltage power cable

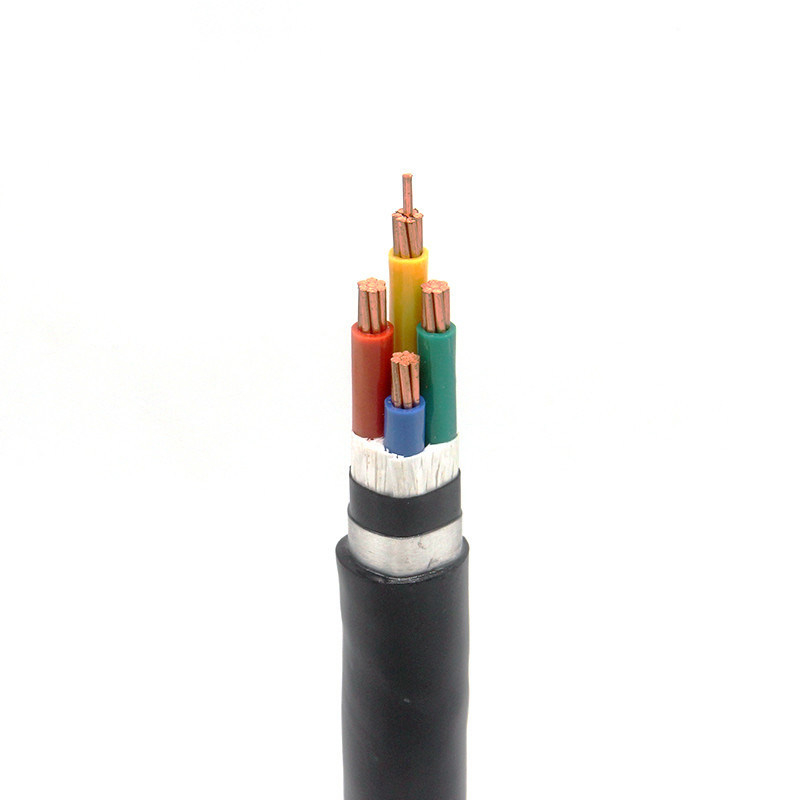

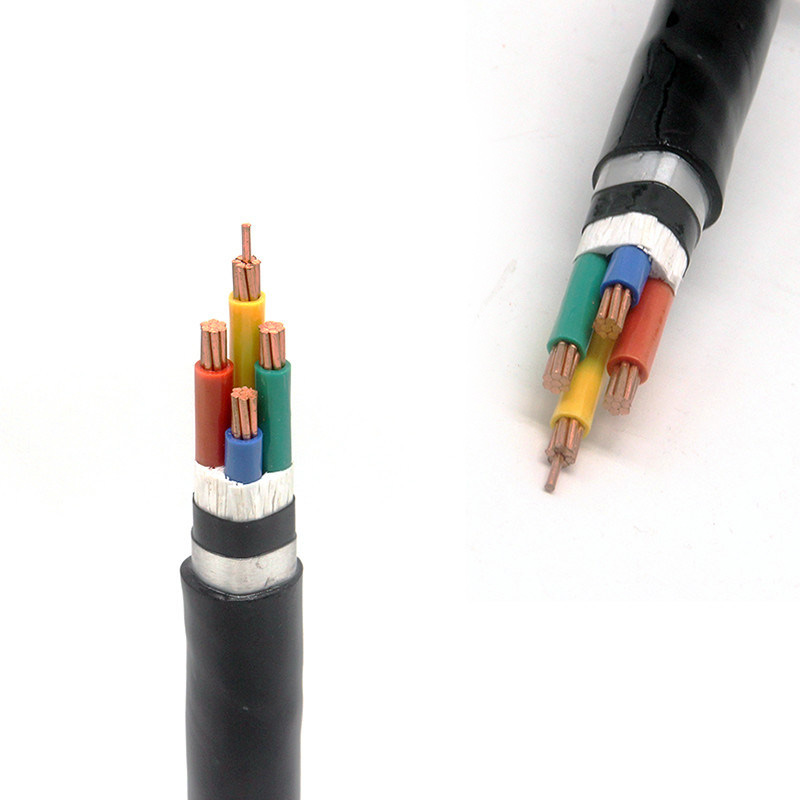

Product Description High voltage yjv22 xlpe dsta pvc power cable nh yjv22 vv22
Place of Origin
China
China
Guangdong
Brand Name
Dongjiaxin
Model Number
VV22
Insulation Material
PVC
Type
LOW VOLTAGE
Application
Industrial
Conductor Material
Copper
Jacket
PVC, PVC Electronic Wire
Product name
Zhongmai Wire
Color
Optional
Material
High Purity Copper
Standard
IEC 60227
Packing
Roll
Insulation
PVC Insulation Cable
Certificate
ISO9001/CCC
Conductor
Copper Core
Package
Wooden Drum
ApplicationI 1. Industrial manufacturing,
2. Shopping malls,
3. Convention and exhibition centers,
4. Architectural buildings
Technical parameter
Cross section of conductor(mm²)
Conductor structure
Insulation Thickness(mm)
Copper sheath thickness(mm)
Approx.cable diameter(mm)
Max resistance of conductor at 20℃ (Ω/km)
4×1.5
1
0.8
1.8
10.1
12.1
4×2.5
1
0.8
1.8
11.0
7.41
4×4
1
1.0
1.8
12.1
4.61
4×6
1
1.0
1.8
13.3
3.08
4×10
7
1.0
1.8
16.0
1.83
4×16
7
1.0
1.8
18.3
1.15
4×25
7
1.2
1.8
22.1
0.727
4×35
7
1.2
1.8
24.6
0.524
4×50
10
1.4
1.9
28.8
0.387
4×70
14
1.4
2.0
33.4
0.268
4×95
19
1.6
2.2
38.4
0.193
4×120
24
1.6
2.3
43.0
0.153
4×150
30
1.8
2.5
47.3
0.124
4×185
37
2.0
2.6
52.7
0.0991
4×240
48
2.2
2.9
59.0
0.0754
4×300
61
2.4
3.1
65.1
0.0601
4×400
61
2.6
3.4
73.3
0.0470
4×500
61
2.8
3.6
82.0
0.0366
4×630
61
2.8
3.9
98.6
0.0283
5×1.5
1
0.8
1.8
10.9
12.1
5×2.5
1
0.8
1.8
11.9
7.41
5×4
1
1.0
1.8
13.1
4.61
5×6
1
1.0
1.8
14.5
3.08
5×10
7
1.0
1.8
17.4
1.83
5×16
7
1.0
1.8
20.0
1.15
5×25
7
1.2
1.8
24.3
0.727
5×35
7
1.2
1.9
27.0
0.524
5×50
10
1.4
2.0
31.9
0.387
5×70
14
1.4
2.2
36.9
0.268
5×95
19
1.6
2.3
42.5
0.193
5×120
24
1.6
2.5
47.5
0.153
5×150
30
1.8
2.6
52.5
0.124
5×185
37
2.0
2.8
58.4
0.0991
5×240
48
2.2
3.1
65.5
0.0754
5×300
61
2.4
3.3
72.3
0.0601
5×400
61
2.6
3.6
81.2
0.0470
5×500
61
2.8
3.9
91.2
0.0366
5×630
61
2.8
4.2
109.5
0.0283
▼ Delivery Port :
Port of Shenzhen
Port of Hongkong
Port of Guangzhou
▼ Shipping: For big orders, we will ship the goods by air or by sea.
▼ CNAS Labortory 3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
