CU SWA Medium Voltage Power Cable DJX Electrical Copper Conductor Cable

Detail Information

Place of Origin:CHINA

Certification:ISO

Model Name:YJV22 8.7/15KV

Conductor Material:Plain Annealed Copper Wires, Strand Class 2.

Size:25~630mm²

Working Temperature:-15℃ To +90℃

Insulation Shielding:Peroxide Cross-linked Strippable Semi-Conductive Shielding Material.

Insulation:XLPE

Sheath:PVC

Application:Industrial, Power Station, Construction, Distribution, Transmission, Or Others.

Packaging Details:100 meters per roll or according to the customer's request.

Highlight:SWA Medium Voltage Power Cable,95Mm2 Medium Voltage Power Cable

Product Description

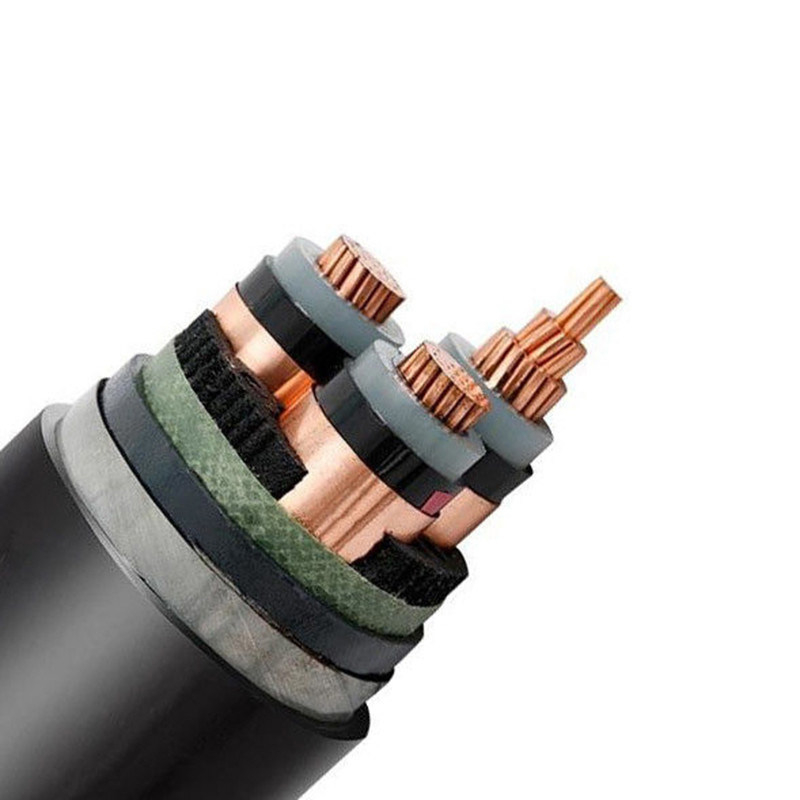

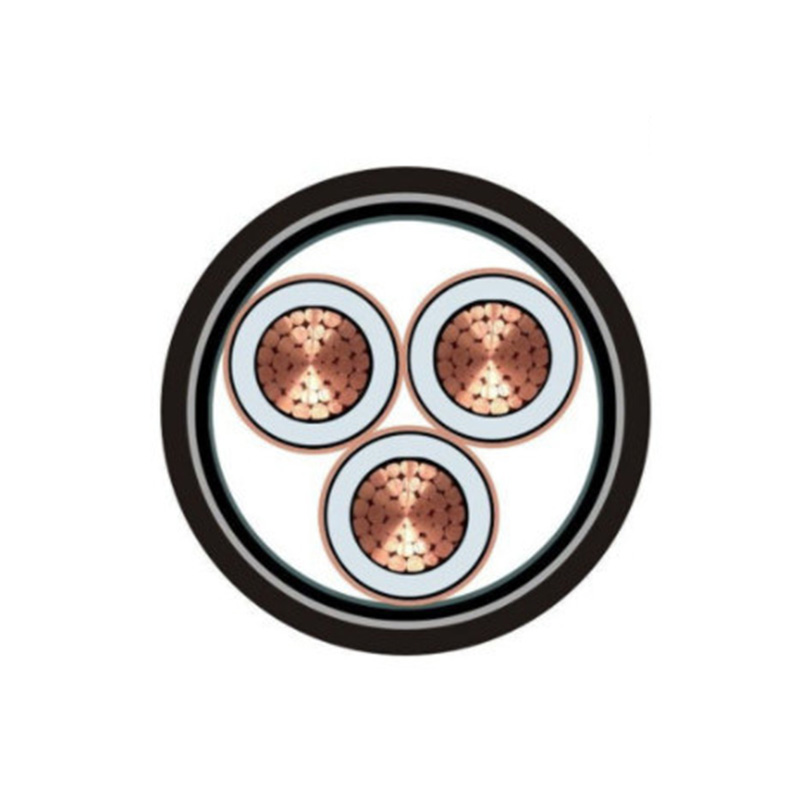

8.7/15kv Medium Voltage Power Cables 3 Core 3 X 95 Mm2 CU SWA Electrical Cable Steel Wire Armoured

Application:

Used for power transmission and distribution line with voltage rated at 35kV and below.Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.

Heat resistance: The mesh XLPE has excellent heat resistance.Does not decompose under 200 °C and carbonization, long-term working temperature is 90 °C, hot life up to 40 years.

Insulation performance: XLPE maintains the good insulation characteristics of PE, and the insulation resistance further increases.The tangent of dielectric loss Angle is very small, and it is not affected by temperature.

Mechanical properties: The hardness, stiffness, abrasion resistance and impact resistance of XLPE are improved due to the establishment of new chemical bonds between macromolecules, thus making up for the vulnerability of PE to environmental stress and cracking.

Chemical resistance: XLPE has strong acid and alkali resistance and oil resistance, and its combustion products are mainly water and carbon dioxide, which are less harmful to the environment and meet the requirements of modern fire safety.
