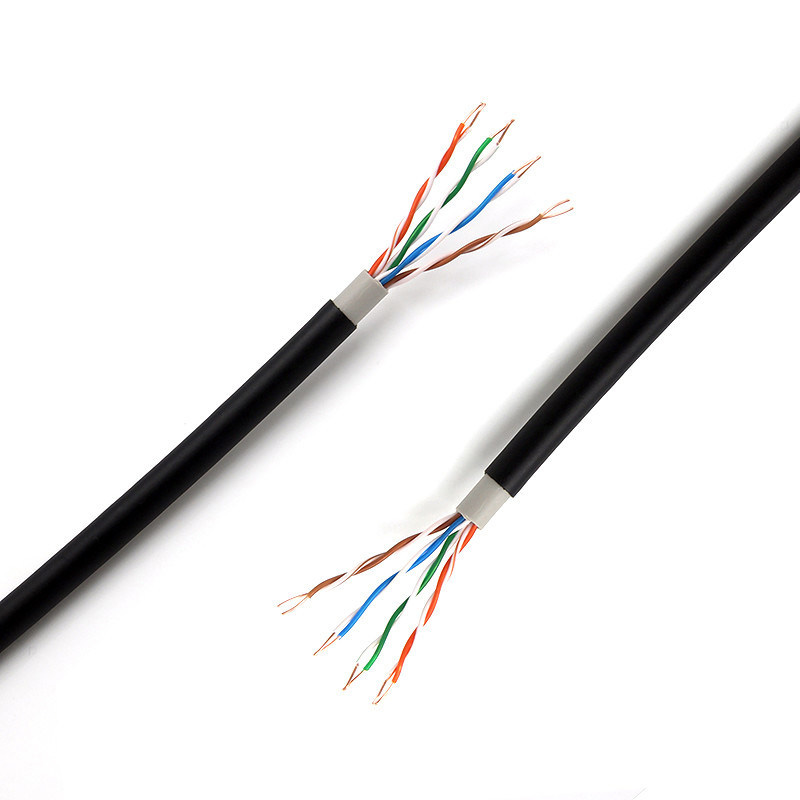

305m Ethernet Lan Cable

Detail Information

Place of Origin:CHINA

Certification:CE

Product Name:CAT5e Lan Cable

Certification:CE

Application:Outdoor

Jacket:PVC

Conductor Type:Copper

Sheath:PVC / LSZH

Insulation:HDPE

Packing:Carton Box

Packaging Details:Steel wooden drum

Highlight:24AWG Ethernet Lan Cable,24AWG 305m Ethernet Lan Cable,HDPE Insulation CAT5e Lan Cable

Product Description

FTP CAT5e Lan Cable,Computer Cable

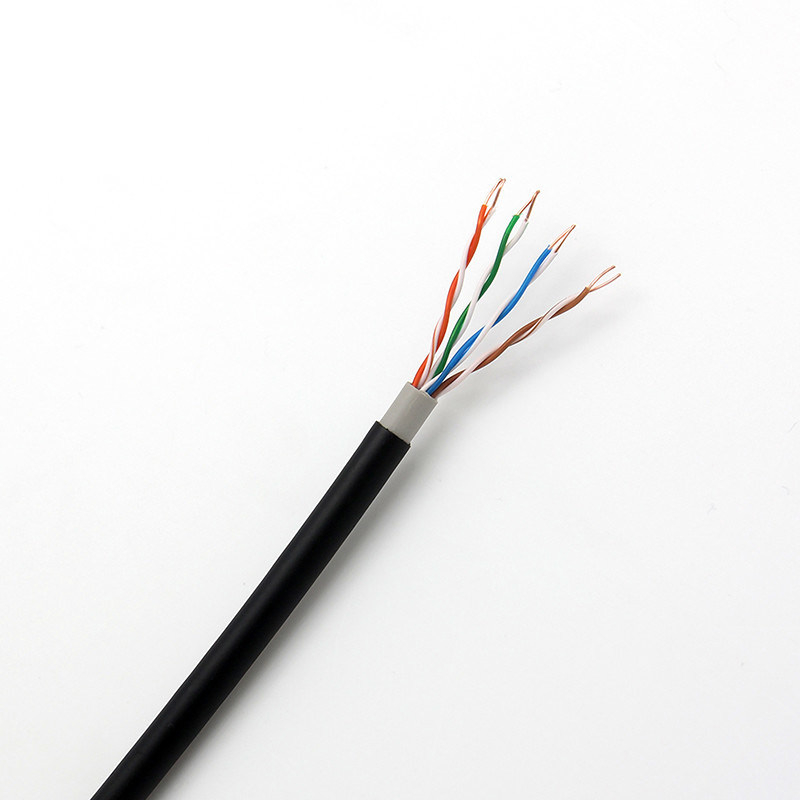

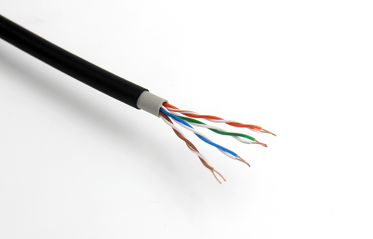

124AWG 4 Pair UTP Cat5e Outdoor Cable 305m

Specification:

· Conductor:

· Material: BC (Bare Copper)

· Type: Solid

· Diameter: 0.50±0.02 mm

·Gauge: 24awg

· Category: Cat5e

· Number of Pair: 4 Pair

· Insulation (Dielectric):

· Material: High Density Poly Ethylene

· Diameter: 0.90±0.02 mm

· Pair1: Orange/White Orange

· Pair2: Blue/ White Blue

· Pair3: Green/ White Green

· Pair4: Brown/White Brown

· Shield: Al Foil

· Drain Wire: 0.5mm CCS (Copper Clad Steel)

· Braiding (Screen):

· Filler: Rip cord + Polyester Tape

· Jacket (Sheath):

Material: PVC+Polyethylene

Outer Dia.: 6.5±0.0.2 mm

· Color: Gray

· Package: 305 (1000ft) meter /Roll /Box

· Implementation standard:

· ANSI/ICEA S-98-688-2006 , ANSI/ICEA S-99-689-1997

· Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment

Packaging details

– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2)	–Electrical wire ready for delivery	–Reel / Drum (as of 35 mm2) –Other packages as required

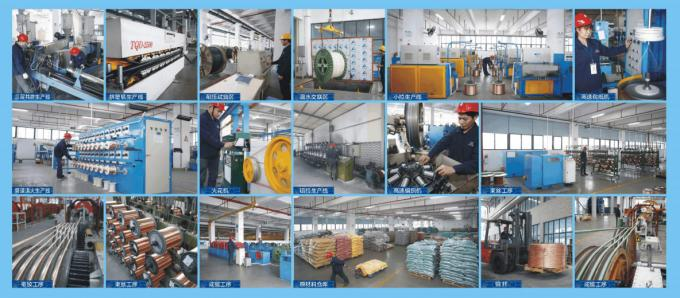

Production equipment:

▼Ordering Options:

For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :

1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.

If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.
