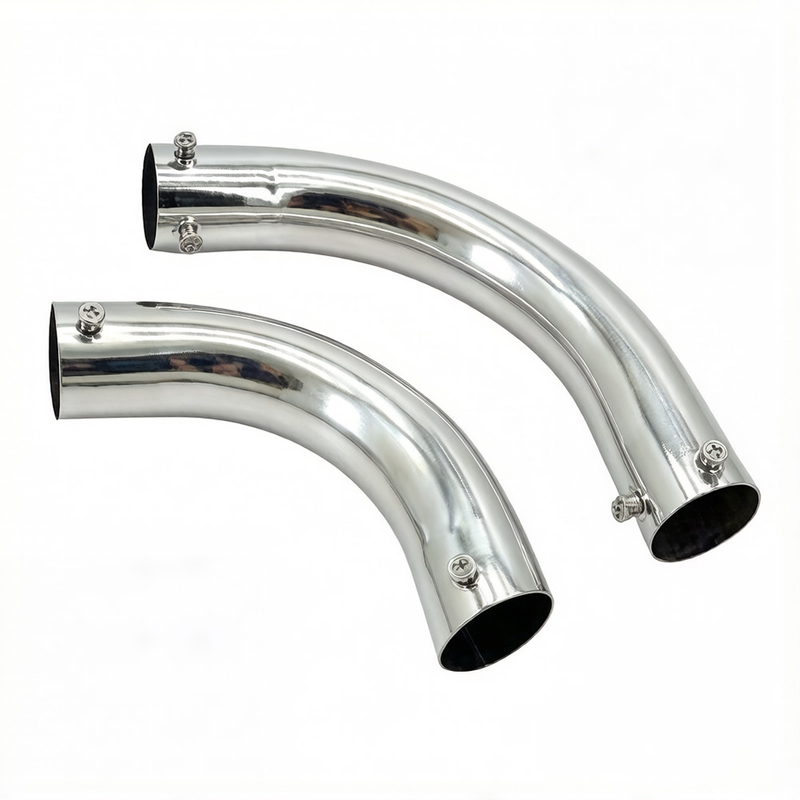

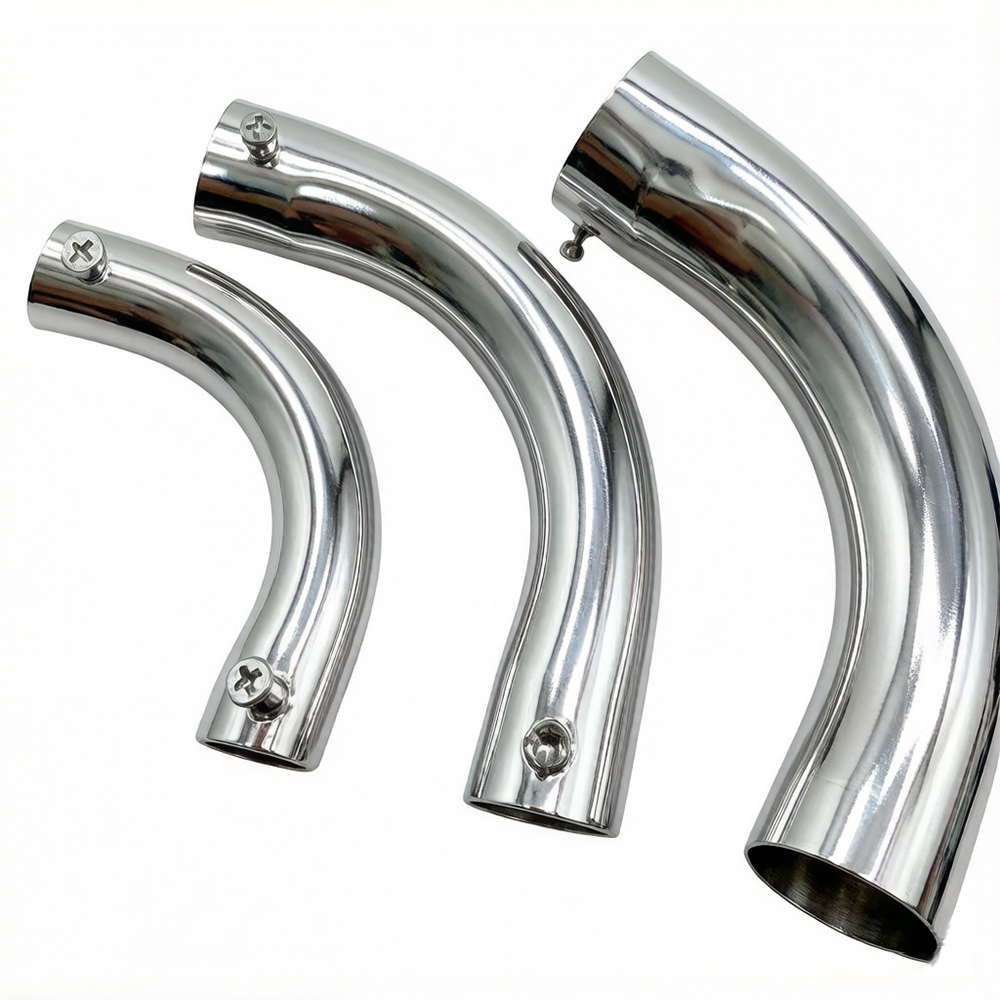

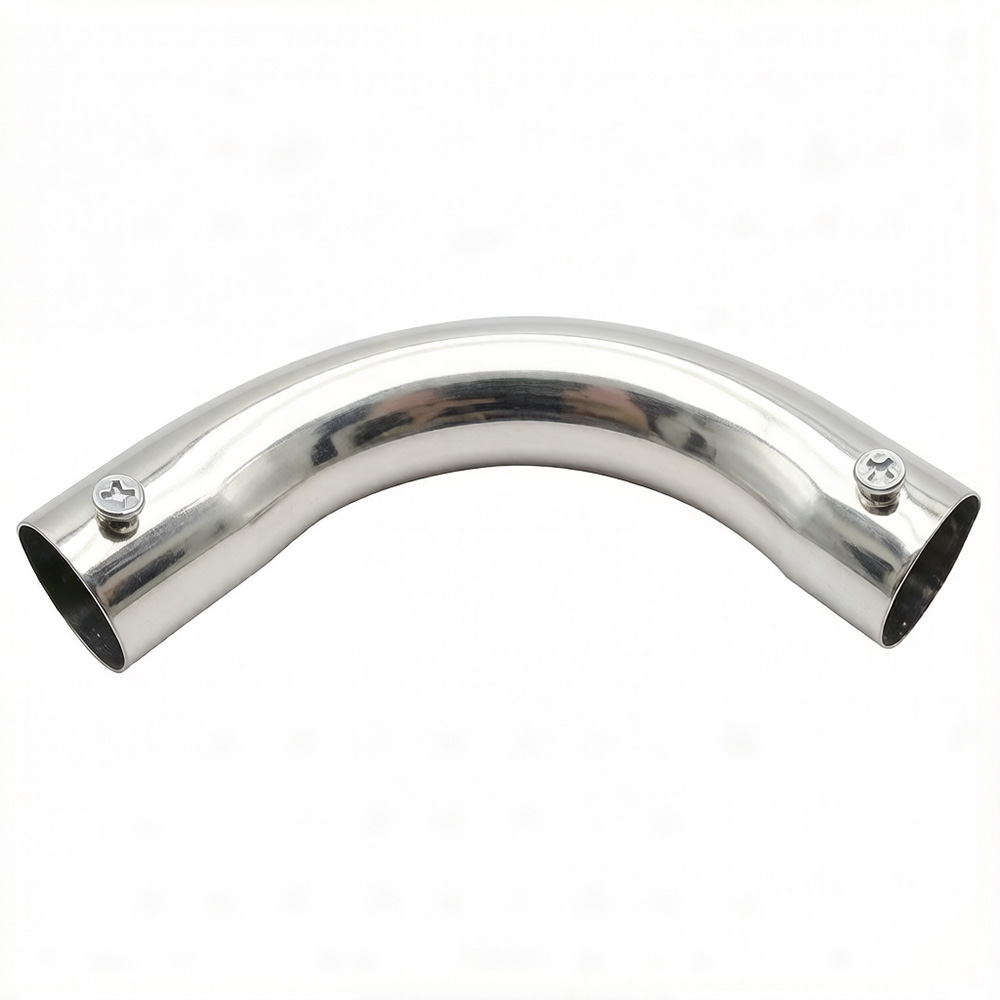

Elbow

Industrial-Grade Metal Conduit Elbows & Bends for Seamless Wire Routing

Are you looking for a reliable, code-compliant solution to change the direction of your metal conduit runs? Our Galvanized Steel Conduit Bends and Elbows are the industry standard for navigating tight wall corners, overhead structural beams, and floor-to-wall transitions. Unlike manual on-site bending which can cause pipe wrinkling, these factory-formed elbows guarantee a perfect curvature radius every time, ensuring smooth, snag-free wire pulling over long distances.

Key Features & Benefits

Precision Factory-Formed Radius: Specially manufactured with mathematically calculated bend radiuses. This prevents the internal diameter from collapsing or ovalizing, allowing maximum wire-fill capacity and effortless cable pulling.

Thick Zinc-Galvanized Armor: Formed from high-tensile carbon steel and finished with a robust galvanized layer. Delivers superior protection against mechanical impacts, warehouse moisture, rust, and industrial weathering.

Deburred & Smooth Interior: The inside track of every elbow is perfectly deburred, polished, and smoothed out. This guarantees that sharp metal edges will never scratch, shave, or tear expensive copper wire insulation.

Flawless Earthing Continuity: Tight metal-to-metal bonding ensures the mandatory, continuous grounding path required by strict modern electrical safety codes.

Versatile Configurations Available

90-Degree Short/Long Radius Elbows: The standard option for executing sharp, clean right-angle turns along concrete walls, pillars, and structural enclosures.

45-Degree Angle Bends: Ideal for making subtle offsets, dog-legs, and avoiding architectural obstacles like water pipes or HVAC ducts.

Inspection/Outlet Elbows (Optional with Cover): Features a removable back metal plate, allowing installers to easily inspect, pull, or splice wires at a corner juncture.

Specifications & Global Sizing Matrix

Material: High-Strength Galvanized Carbon Steel

Bend Angles: 90° / 45° Available [1, 2]

Connection Compatibility: Seamlessly pairs with Set-Screw (JDG) or Compression (KBG/EMT) couplings.

Sizes Available (To fit precise outer diameters):

• Metric Standards (JDG/KBG): Φ20mm, Φ25mm, Φ32mm, Φ40mm, Φ50mm

  Trade Size Equivalents (EMT): 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
