Cable tray systems are widely used in commercial buildings, data centers, industrial plants, power projects, and renewable energy facilities for safe and organized cable management.
A properly installed cable tray system can improve cable protection, reduce maintenance costs, enhance electrical safety, and provide long-term reliability.
As an experienced cable tray manufacturer, Shenzhen Wanan Industrial provides professional cable management solutions including perforated cable trays, ladder cable trays, solid bottom cable trays, wire mesh cable trays, and customized cable tray systems.
This guide explains the basic installation requirements, procedures, and best practices for cable tray installation.
A cable tray system is a structural support system designed to support insulated electrical cables, communication cables, and control cables.
Compared with traditional cable conduit systems, cable trays provide:
Better ventilation and heat dissipation
Easier cable installation and maintenance
Flexible cable routing
Lower installation cost
Improved cable organization
Cable trays are commonly used in:
Data centers
Industrial factories
Oil & gas facilities
Solar power plants
Commercial buildings
Infrastructure projects
Before installation, engineers should confirm the following requirements:
Different applications require different cable tray designs.

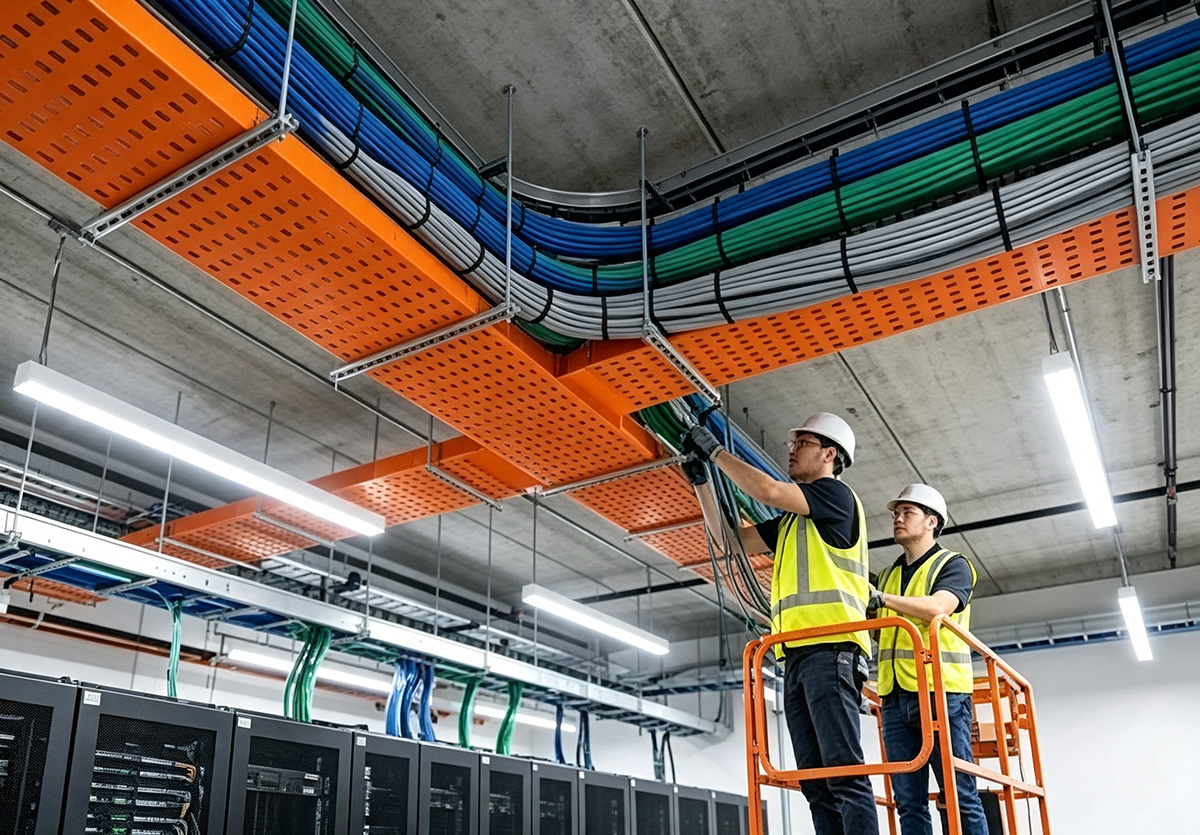

Suitable for:
Power cables
Control cables
Commercial buildings
Data centers
Advantages:
Good ventilation
Easy cable fixing
Balanced strength and weight

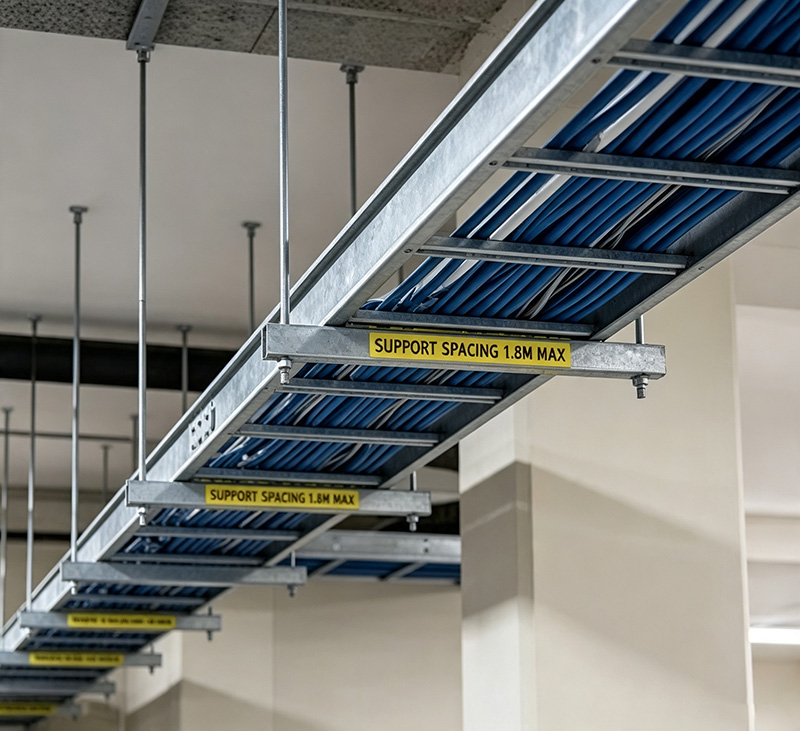

Suitable for:
Heavy power cables
Long-span installation
Industrial projects
Advantages:
High load capacity
Excellent heat dissipation
Suitable for:
Sensitive cables
Dust protection requirements
Indoor applications
Before installation, the engineering team should review:
Cable quantity
Cable weight
Tray width and height
Installation route
Support structure
Environmental conditions
The cable tray should not be overloaded.
A professional cable tray manufacturer can provide load tables and technical recommendations according to project requirements.
According to the engineering drawings:
Mark cable tray routes
Confirm elevation height
Check interference with other systems
The cable tray route should avoid:
Water pipes
HVAC equipment
Mechanical obstacles

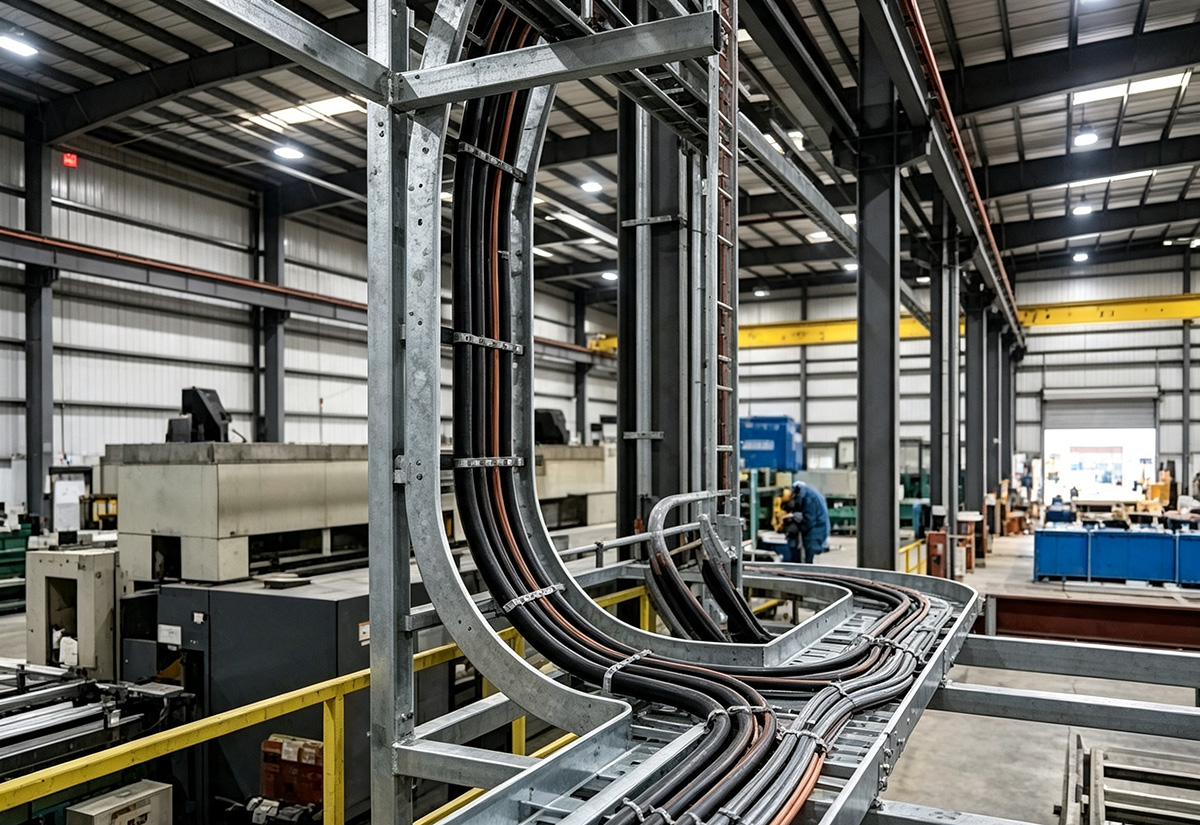

Cable tray supports are critical for system stability.
Common support methods include:
Ceiling suspension
Wall brackets
Floor supports
Trapeze supports
The support spacing depends on:
Cable tray type
Cable weight
Tray material
Project requirements
Typical spacing:
Cable Tray Type | Recommended Support Spacing |
|---|---|
Light-duty cable tray | 1.5–2.0 m |
Medium-duty cable tray | 1.5 m |
Heavy-duty cable ladder | 1.2–1.5 m |
(Actual spacing should follow project design requirements.)
During installation:
Align tray sections properly
Connect sections with splice plates
Tighten bolts securely
Maintain straight cable routes
For outdoor projects, additional protection may be required:
Hot dip galvanized coating
Zinc aluminum magnesium coating
Powder coating
Stainless steel materials
A complete cable tray system usually includes:
Horizontal bends
Vertical bends
Tees
Crosses
Reducers
Couplers
Covers
Supports
Using proper accessories improves cable protection and installation quality.
After cable tray installation:
Cables should be arranged according to:
Voltage level
Cable type
Heat generation
Maintenance requirements
Recommended practices:
Avoid excessive cable stacking
Use cable ties or clamps
Maintain ventilation space
Separate power and communication cables when required
Metal cable trays should normally be bonded and grounded according to applicable electrical standards.
Grounding helps:
Improve electrical safety
Reduce electrical interference
Protect equipment
Common grounding methods:
Grounding conductor connection
Bonding jumpers between tray sections
Connection to building grounding system
Too large support spacing may cause:
Tray deformation
Excessive loading
Safety risks
Different environments require different materials.
Examples:
Environment | Recommended Material |
|---|---|
Indoor building | Pre-galvanized steel |
Outdoor projects | HDG / ZAM coating |
Coastal areas | Stainless steel / special coating |
Cable trays should maintain sufficient spare capacity for future expansion.
Depending on the country and project requirements, cable tray systems may follow:
IEC 61537 Cable Tray Standard
NEMA VE 1
International electrical installation standards
Local project specifications
For international projects, selecting a cable tray supplier with professional testing capability is important.
Shenzhen Wanan Industrial is a professional manufacturer specializing in:
Cable Tray Systems
Solar Mounting Systems
Electrical Conduit Solutions
Our advantages:
✓ Over 22 years manufacturing experience
✓ ISO9001 Quality Management System
✓ ISO14001 Environmental Management System
✓ ISO45001 Occupational Health & Safety System
✓ CNAS laboratory testing capability
✓ Customized design and OEM production
✓ Export experience for overseas markets
We provide cable tray solutions for:
Data centers
Solar power plants
Industrial projects
Commercial buildings
EPC contractors worldwide
A properly designed and installed cable tray system ensures reliable cable management, safety, and long-term performance.
Choosing the right cable tray type, correct support spacing, suitable materials, and professional installation methods are essential for project success.
